Modular Concrete Block Course & Joint Blueprint (8×8×16)
See how 15-5/8" × 7-5/8" actual concrete blocks combine with 3/8" head and bed mortar joints to form exact 16" × 8" modular grid increments.
Concrete Block Course Grid & Rough Opening Coordinator
Verify modular 8-inch concrete block courses, 16-inch horizontal module coordination, and net block deductions for doors and windows.
Quick Dimension Reference: Inches & Millimeters (mm)
Standard US concrete blocks measure 7-5/8" × 7-5/8" × 15-5/8" actual (194 × 194 × 397 mm). Adding a standard 3/8-inch (9.5 mm) mortar joint yields an exact 8" × 8" × 16" nominal footprint (203 × 203 × 406 mm), while SI metric modular markets use 190 × 190 × 390 mm actual (200 × 200 × 400 mm nominal) with 10 mm joints.
This modular grid ensures 3 courses equal exactly 24 inches (610 mm) vertically, and 3 blocks laid end-to-end equal 48 inches (1,219 mm) horizontally.
Standard Size of Concrete Block in Millimeters (mm) & Metric Chart
ASTM C90 (mm) & SI Modular ReferenceA standard 8-inch concrete block measures 194 × 194 × 397 mm actual and 203 × 203 × 406 mm nominal under ASTM C90 (with a 9.5 mm mortar joint), or 190 × 190 × 390 mm actual (200 × 200 × 400 mm nominal) in international SI metric modular construction.
| Block Type & Nominal (in) | Actual Size in mm (W × H × L) | Nominal Size in mm (9.5 mm Joint) | SI Metric Modular (10 mm Joint) | Typical Unit Weight |
|---|---|---|---|---|
| Standard 8" Stretcher (8×8×16) | 194 × 194 × 397 mm | 203 × 203 × 406 mm | 190 × 190 × 390 mm (200×400 nom.) | 17.2 – 19.1 kg (38–42 lb) |
| 4" Partition / Veneer (4×8×16) | 92 × 194 × 397 mm | 102 × 203 × 406 mm | 90 × 190 × 390 mm (100×400 nom.) | 10.9 – 11.8 kg (24–26 lb) |
| 6" Narrow Wall (6×8×16) | 143 × 194 × 397 mm | 152 × 203 × 406 mm | 140 × 190 × 390 mm (150×400 nom.) | 13.6 – 14.5 kg (30–32 lb) |
| 10" Stem Wall (10×8×16) | 244 × 194 × 397 mm | 254 × 203 × 406 mm | 240 × 190 × 390 mm (250×400 nom.) | 21.8 – 23.6 kg (48–52 lb) |
| 12" Heavy Structural (12×8×16) | 295 × 194 × 397 mm | 305 × 203 × 406 mm | 290 × 190 × 390 mm (300×400 nom.) | 25.4 – 27.2 kg (56–60 lb) |
| 8" Half Block (8×8×8) | 194 × 194 × 194 mm | 203 × 203 × 203 mm | 190 × 190 × 190 mm (200×200 nom.) | 9.1 – 10.0 kg (20–22 lb) |
| 8" Solid Cap Block (8×4×16) | 194 × 92 × 397 mm | 203 × 102 × 406 mm | 190 × 90 × 390 mm (100 mm H) | 14.5 – 15.9 kg (32–35 lb) |
Metric wall coverage note: SI modular 200 × 400 mm blocks cover 0.08 m² per block (12.5 blocks/m² net; ~13.75 blocks/m² with 10% waste). US ASTM C90 blocks (203 × 406 mm nominal) cover 0.0826 m² per block (12.1 blocks/m² or 1.125 blocks/sq ft).
Standard US Concrete Block Dimensions Chart (Inches)
ASTM C90 Commercial Specification| Block Type & Nominal Size | Actual Dimensions (W × H × L) | Wall Face Area | Blocks / 100 Sq Ft | Average Weight | Core Void % |
|---|---|---|---|---|---|
| Standard 8" Stretcher Block | 7-5/8" × 7-5/8" × 15-5/8" | 0.889 sq ft | 113 (124 w/ waste) | 38 – 42 lbs | ~50% |
| 4" Partition / Veneer Block | 3-5/8" × 7-5/8" × 15-5/8" | 0.889 sq ft | 113 (124 w/ waste) | 24 – 26 lbs | ~35% |
| 6" Narrow Wall Block | 5-5/8" × 7-5/8" × 15-5/8" | 0.889 sq ft | 113 (124 w/ waste) | 30 – 32 lbs | ~45% |
| 10" Foundation Stem Block | 9-5/8" × 7-5/8" × 15-5/8" | 0.889 sq ft | 113 (124 w/ waste) | 48 – 52 lbs | ~52% |
| 12" Heavy Structural Block | 11-5/8" × 7-5/8" × 15-5/8" | 0.889 sq ft | 113 (124 w/ waste) | 56 – 60 lbs | ~54% |
| 8" Half Block (Corners) | 7-5/8" × 7-5/8" × 7-5/8" | 0.444 sq ft | 225 blocks | 20 – 22 lbs | ~50% |
| 8" Bond Beam Block (Channel) | 7-5/8" × 7-5/8" × 15-5/8" | 0.889 sq ft | Continuous courses | 37 – 39 lbs | U-Channel |
| 8" Solid Cap Block | 7-5/8" × 3-5/8" × 15-5/8" | 0.444 sq ft | Cap course | 32 – 35 lbs | 0% (Solid) |
ASTM C90 Dimensional Tolerances & ASTM C140 Quality Testing
Allowable Manufacturing Variances
Under ASTM C90 (Standard Specification for Loadbearing Concrete Masonry Units), manufactured units must adhere to strict dimensional limits:
- Height, Width & Length: Overall dimensions must not vary by more than ±1/8 inch (±3.2 mm) from specified dimensions.
- Face Shell Minimum: Must meet or exceed 1.25 inches (32 mm) for 8-inch units.
- Web Minimum: Individual webs must not measure less than 1.00 inch (25 mm).
- Warpage & Squareness: Distortion on any face shell must not exceed 1/8 inch.
ASTM C140 Compressive Testing Protocols
To verify structural integrity, three full-size units are sampled and tested in accordance with ASTM C140:
- Capping: Units are capped using high-strength sulfur mortar compound or unbonded neoprene pads to ensure flat, uniform load distribution.
- Net Area Compressive Strength: Minimum average of 2,000 PSI (13.8 MPa) across 3 specimens, with no individual unit below 1,800 PSI.
- Water Absorption: Maximum absorption limited to 13 to 18 lb/cu ft depending on density tier to prevent freeze-thaw spalling.
Hollow vs. Solid vs. Solid-Top Cap Concrete Blocks
| Classification | Net Solid Volume | Weight (8x8x16) | Fire Endurance (IBC Ch 7) | Acoustic STC | Key Engineering Applications |
|---|---|---|---|---|---|
| Hollow CMU (2-Core) | 48% – 52% | 38 – 42 lbs | 1.5 to 2.0 Hours | STC 45 – 48 | Exterior walls, retaining walls, multi-story structural frames |
| 100% Solid Block | 100% Solid | 58 – 64 lbs | 3.0 to 4.0 Hours | STC 52 – 55 | Equipment pads, transformer vaults, elevator shafts, ballast |
| Solid-Top Cap Block | 75% – 85% | 44 – 48 lbs | 2.0 to 3.0 Hours | STC 48 – 50 | Top-of-wall sill plate distribution, parapet wall coping |
Mortar Joint Tooling Profiles & Weatherproofing Physics
The geometry of the tooled mortar joint plays a crucial role in water intrusion resistance and structural durability. Improperly tooled joints create ledges that catch rainwater and accelerate freeze-thaw damage:
Formed with a curved steel jointing tool. Highly compacted mortar surface sheds water effortlessly. Number one recommended joint for all exterior masonry in North America.
Formed with a triangular jointer. Sheds water effectively and compresses the mortar tightly against upper and lower face shells. Common in architectural exposed masonry.
Sloped outward from the top face shell to shed water down and away. Requires skilled hand craftsmanship with a trowel edge. Good water shedding performance.
Mortar is scraped out 1/4" to 3/8" deep. Creates a flat shelf where rainwater pools, leading to leakage and spalling. Never use on exterior walls in freezing climates.
Pallet Weight, Hauling Logistics & Jobsite Staging Math
Flatbed Freight Logistics & DOT Axle Limits

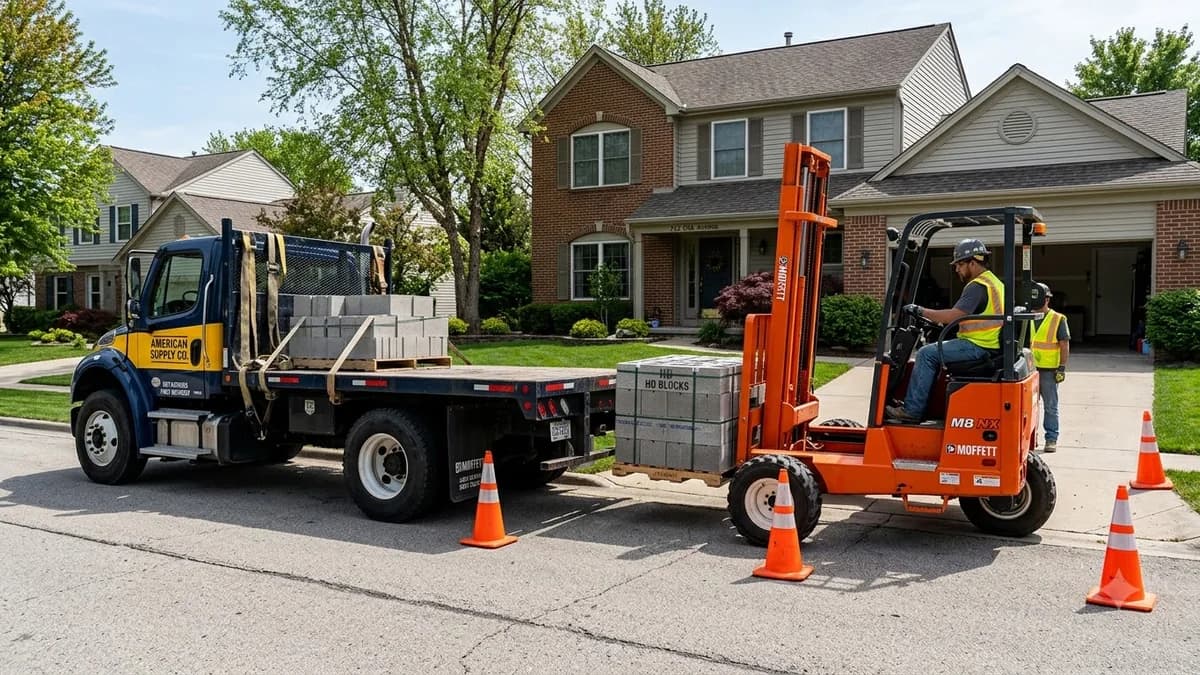

Commercial concrete blocks are extremely heavy freight. A standard commercial flatbed semi-truck has a legal cargo payload capacity of approximately 45,000 to 48,000 pounds under federal DOT 80,000-lb Gross Vehicle Weight Rating (GVWR) limits:

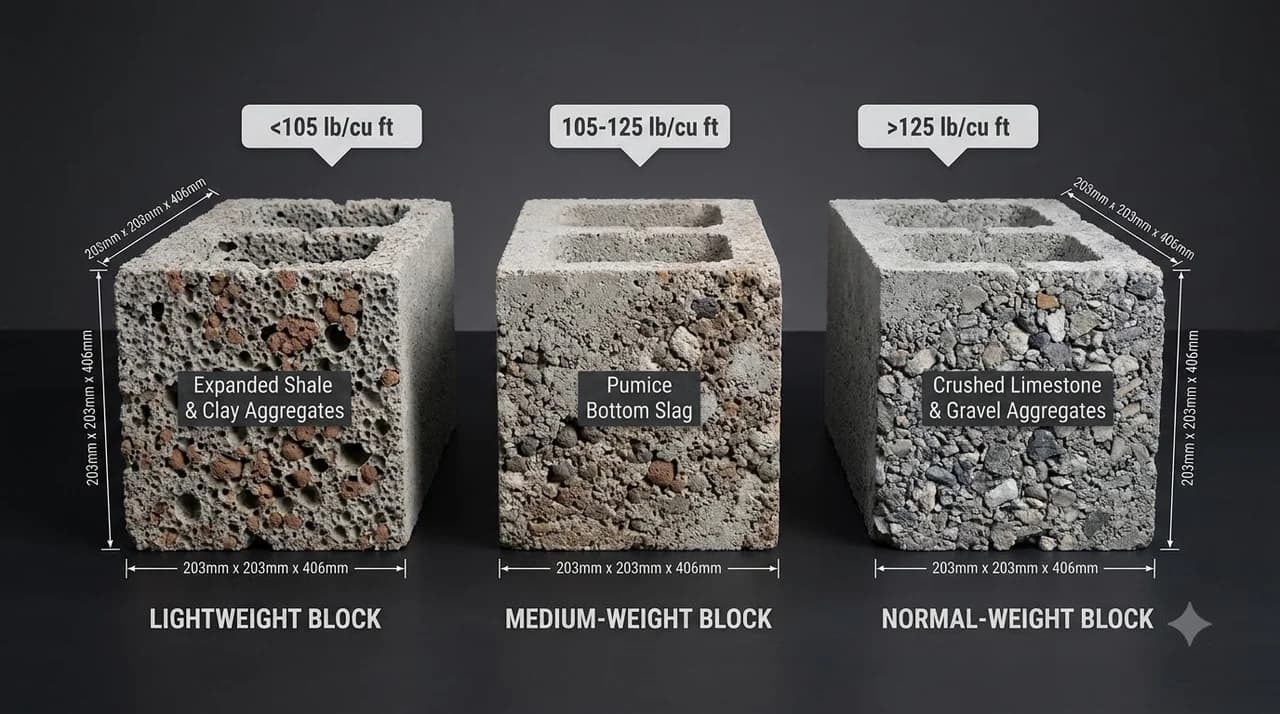

- 8x8x16 Normal Weight: Pallets hold 90–108 blocks (3,400–4,100 lbs). A flatbed can legally haul only 11 to 13 pallets per load.
- 8x8x16 Lightweight: Pallets hold 108 blocks (~2,900 lbs). A flatbed can haul 15 to 16 pallets, saving up to 25% on delivery freight costs.
- 4x8x16 Partitions: Pallets hold 135 blocks (~3,240 lbs). A flatbed accommodates 14 pallets.
Safe Jobsite Staging Rules
Contractor rules for staging concrete blocks along foundation trenches and slabs:
- Trench Surcharge Clearance: Never stage block pallets closer than 4 feet from the edge of an excavated footing trench to prevent soil cave-in.
- Slab Loading: Do not concentrate multiple pallets on un-cured slab-on-grade floors; spread pallets across structural column lines.
- Weather Protection: Keep stacked pallets wrapped or tarped to prevent aggregate saturation before laying in mortar.
Concrete Block (CMU) vs. Poured Concrete Foundation Walls
| Feature / Metric | Concrete Block (CMU) Wall | Poured Solid Concrete Wall |
|---|---|---|
| Illustrative Turnkey Cost (8-ft wall) | $110 – $145 per linear foot | $130 – $175 per linear foot |
| Site Accessibility | Excellent for tight urban lots, hillside terrain, and remote access | Requires large concrete mixer trucks and boom pump trucks |
| Formwork Requirement | Zero formwork; self-supporting modular installation | Requires heavy aluminum or plywood forms and bracing |
| Lateral Earth Resistance | High when core-grouted with vertical rebar every 32" or 48" | Extremely high monolithic shear and lateral flexural resistance |
| Cold Weather Laying | Can be laid with heated mortar; no massive curing heat loss | Requires insulated curing blankets and frost protection |
Special Block Configurations & Architectural Shapes
Have cut-out cross webs allowing continuous horizontal rebar (#4 or #5) and poured concrete grout to form a continuous horizontal structural tie-beam around the building perimeter.
Feature an open end web allowing blocks to be slid horizontally around existing vertical rebar dowels, eliminating the physical strain of lifting heavy blocks over 8-foot vertical bars.
Have smooth, rounded external corners (1" or 2" radius) for exposed exterior wall corners, doorways, stairwell entries, school corridors, and public retaining wall copings.
Calculate Concrete Blocks for Your Project
Estimate block quantities, mortar bags, rebar, and core fill in seconds.
Frequently Asked Questions About Concrete Block Dimensions
What is the standard concrete block size?
The standard concrete block size in the United States is 8 inches by 8 inches by 16 inches nominal (203 × 203 × 406 mm). Its actual manufactured size is 7-5/8 inches wide, 7-5/8 inches high, and 15-5/8 inches long (194 × 194 × 397 mm).
What is the standard size of a concrete block in mm?
Under US ASTM C90 standards, a standard 8×8×16 concrete block measures 194 × 194 × 397 mm actual and 203 × 203 × 406 mm nominal with a 9.5 mm (3/8 in) mortar joint. In international SI metric modular construction using 10 mm joints, standard blocks measure 190 × 190 × 390 mm actual (200 × 200 × 400 mm nominal).
How much wall area does one standard concrete block cover?
When installed with standard 3/8-inch (9.5 mm) mortar joints, one 8x8x16 concrete block occupies 8 inches × 16 inches = 128 square inches, which equals 0.889 square feet. It takes 1.125 blocks to cover 1 square foot of wall (about 12.1 to 12.5 blocks per square meter).
What is the difference between hollow and solid concrete blocks?
Hollow concrete blocks have two or three internal cores (cells) comprising 25% to 50% void space, allowing rebar and grout reinforcement. Solid blocks (or solid-top cap blocks) have 75% or greater net cross-sectional solid concrete, used for foundation footings, bearing plates, or top wall caps.
What are standard ASTM C90 dimensional tolerances?
ASTM C90 standard manufacturing tolerances allow an overall dimension variance of no more than ±1/8 inch (±3.2 mm) from standard specified dimensions for height, width, and length.
How many blocks are on a standard concrete block pallet?
In the United States, a standard wooden pallet typically holds 90 to 108 units of 8x8x16 concrete blocks, stacked in 3 to 4 tiers, weighing between 3,400 and 4,200 pounds (1,540 to 1,905 kg) depending on aggregate density.
