A nominal 4×8×16 concrete masonry unit has actual manufactured dimensions of 3-5/8 × 7-5/8 × 15-5/8 inches (92 × 194 × 397 mm). Used primarily for non-bearing interior partition walls and veneer backings, each 4-inch CMU weighs 18 to 26 lbs depending on aggregate density and yields 1.125 blocks per sq ft.
Looking to compare all nominal concrete block widths (4", 6", 8", 10", and 12")?CMU Block Dimensions Master Chart (4"–12")

A 4-inch Concrete Masonry Unit (nominal 4×8×16) is precision manufactured with actual dimensions of 3-5/8" × 7-5/8" × 15-5/8" (92mm × 194mm × 397mm). Designed primarily for non-loadbearing fire demising partitions, veneer backup systems, and high-abuse commercial corridors, a 4-inch block weighs 18 to 22 pounds and delivers up to a 2-hour fire-resistance rating with minimal floor slab dead-load deflection.

Advertisement

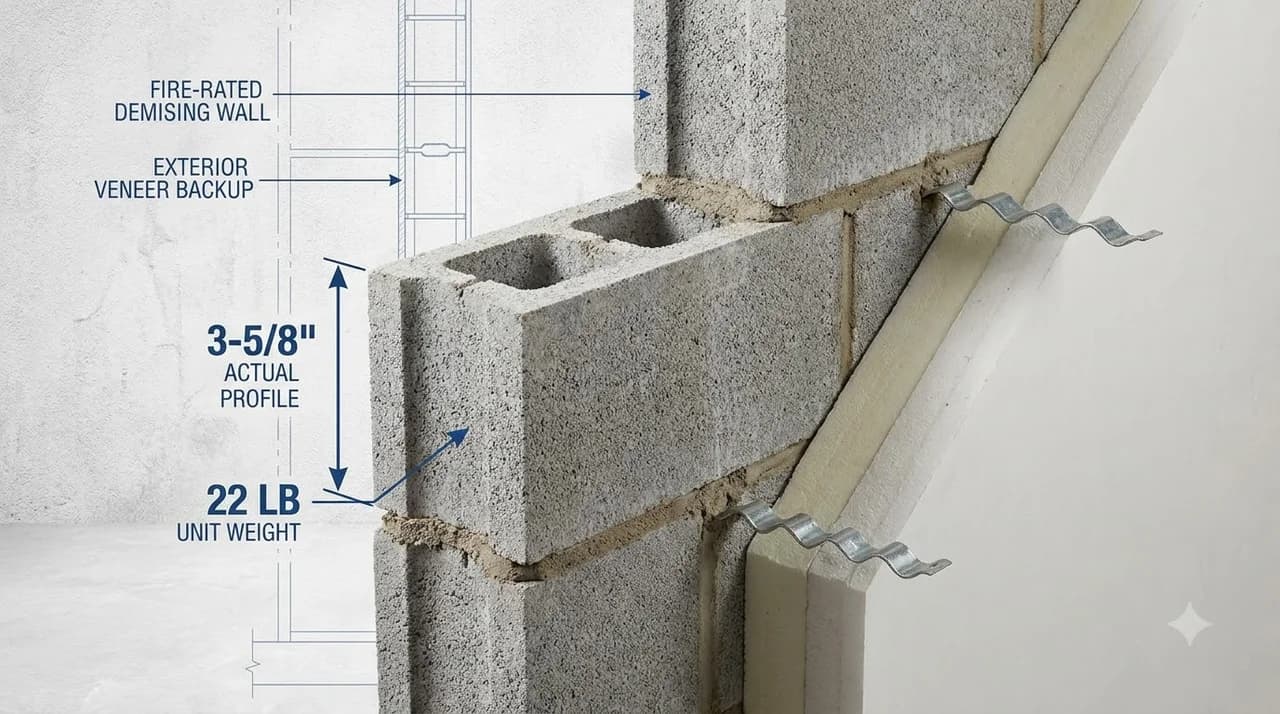

Architectural 3D cutaway wall assembly featuring 4-inch CMU masonry partition blocks and veneer backup
ASTM C90 / C129 • 4-Inch Partition Unit

4-Inch Partition CMU Isometric Blueprint (4×8×16)

Inspect slim 4-inch nominal (3-5/8" actual) non-load-bearing partition geometry, 1" face shells, and 144-unit pallet spec.

L: 15-5/8" (15.625")H: 7-5/8" (7.625")W: 3-5/8" (3.625")Mode: Factory Actual Size (Before Mortar)
Face Shell Thickness1" min (25 mm)
Web Thickness1" min (25 mm)
Core / Cavity SpecNarrow 1-5/8" Core Slot (0.08 ft³/blk)
Modular Coverage144 blocks/pallet • 0.6× mortar factor
4" Partition Spec

4-Inch Partition CMU Wall & Pallet Calculator

Calculate 4×8×16 partition blocks (actual 3-5/8" × 7-5/8" × 15-5/8"), mortar bags (0.6× shell factor), and 144-block pallets.

Quick Dimension & Wall Presets:
4" Blocks Needed: 198 blocks
Details ↓
4" Blocks Needed198 blocks180 net + 10% waste
Course Layout12 courses15 blocks/course (3-5/8" thick)
80-lb Mortar Bags4 bags4" face-shell bedding (0.6× factor)
Pallet Order (144/skid)2 pallets288 delivered (6,992 lb)
Dimensional Basis: 4×8×16 nominal CMU = 1.125 blocks/sq ft; 144 units per standard pallet; 0.6× mortar multiplier vs 8-inch block.
Open Full 4-Inch Block Calculator
Nominal Size
4" x 8" x 16"
Slim partition grid
Actual Size
3⅝" x 7⅝" x 15⅝"
92 x 194 x 397 mm
Fire Rating
1 – 2 Hours
IBC Chapter 7 rated
Avg Unit Weight
18 – 22 lbs
Lightweight partition

Detailed ASTM C90 Cross-Section Specifications for 4-Inch CMU

Standard 2-Core Stretcher
Component / MeasurementStandard Dimension (Imperial)Metric EquivalentASTM C90 Standard Requirement
Unit Thickness (Width)3-5/8 in92 mm± 1/8 in manufacturing variance
Unit Height7-5/8 in194 mmStandard 8-inch modular course height
Unit Length15-5/8 in397 mmStandard 16-inch center-to-center spacing
Face Shell Thickness3/4 in19 mmMin 0.75 in per ASTM C90 Table 1
Internal Web Thickness3/4 in19 mmMin 0.75 in cross web divider
Core Cell Dimensions1-3/4 in × 5 in44 × 127 mmToo narrow for standard rebar centralizing
Net Cross-Sectional Area~32.5 sq in210 cm²~56% solid volume fraction

IBC Chapter 7 Fire-Resistance Ratings for 4-Inch CMU

Equivalent Solid Thickness Method
Aggregate Type (ASTM C90)Hollow Unfilled RatingFilled with Perlite/VermiculiteSolid 4-Inch Concrete UnitCode Application
Siliceous Gravel Aggregate1.0 Hour1.5 Hours2.0 HoursStandard 1-hr commercial tenant demising partitions
Calcareous Gravel / Limestone1.0 Hour1.5 Hours2.0 HoursInstitutional firewalls, school storage corridors
Expanded Shale, Slate or Clay1.5 Hours2.0 Hours3.0 HoursHigh-performance 2-hr fire separation assemblies
Expanded Slag or Pumice1.75 Hours2.0 Hours3.0 HoursStairwell enclosures and elevator shaft fire barriers

* Per IBC Table 722.3.2. Filling hollow cores with loose-fill silicone-treated perlite or vermiculite increases equivalent solid thickness to 100%, boosting fire resistance without adding excessive dead load to floor slabs.

Unbraced Height Limits & Ceiling Deflection Connections (IBC 2109)

Maximum Allowable Partition Heights

Under the International Building Code (IBC Section 2109), interior non-bearing masonry partitions are governed by a maximum height-to-thickness ratio (h/t ≤ 30):

  • Standard 4-Inch CMU (3-5/8" actual): Maximum allowable unbraced height between floor slab and structural ceiling is 9 feet 1 inch (108 inches).
  • With Horizontal Pilasters / Bond Beams: Unbraced height can be extended to 12 feet when reinforced horizontally with ladder mesh every 8 inches vertically.
  • Non-Bearing Rule: Never apply vertical roof or floor framing loads directly to 4-inch CMU partition walls.

Slotted Deflection Track Connection

In commercial concrete and steel frame buildings, overhead floor slabs deflect under live occupant loads. The top of a 4-inch CMU partition must never be mortared tightly to the underside of the upper floor deck:

  • Deflection Gap: Leave a 1/2" to 3/4" gap between the top block course and the overhead deck.
  • Slotted Angle Clips: Fasten slotted steel angle clips to the deck, allowing the building structure to deflect vertically while providing lateral out-of-plane restraint to the wall top.
  • Firestopping Seal: Pack the joint with mineral wool batting and seal with elastomeric fire-rated silicone sealant (UL 2079).

Exterior Cavity Wall Design: 4-Inch CMU Backup Systems

In commercial architecture, 4-inch CMUs frequently serve as the interior structural backup wall behind exterior clay brick or architectural stone veneer assemblies:

Continuous Insulation Plane

A 2-inch continuous layer of rigid polyiso (R-13) or XPS (R-10) is fastened directly to the exterior face of the 4" CMU backup, satisfying ASHRAE 90.1 energy envelope codes.

1-Inch Drainage Air Cavity

A minimum 1-inch clear air space between rigid insulation and exterior brick veneer allows penetrating wind-driven rainwater to drain freely down to base weep screeds.

Adjustable Wire Ties

Hot-dipped galvanized 2-piece wire eye-and-pintle anchors are embedded in the 4" CMU mortar joints every 16" vertical by 24" horizontal to transfer lateral wind loads.

Advertisement

Floor Slab Dead Load Math & Acoustic Sound Transmission (STC)

Dead-Weight Advantage Over 8-Inch Block

A standard hollow 4-inch CMU wall weighs only 22 to 26 lbs per square foot of wall face (compared to 38 to 43 lbs/sq ft for an 8-inch wall). On multi-story commercial buildings with thousands of linear feet of corridor demising walls, selecting 4-inch CMU saves hundreds of tons of structural dead load, preventing excessive floor slab beam sagging and foundation footings over-sizing.

Acoustic Sound Transmission (STC 44–48)

Unlike drywall assemblies that transmit low-frequency sound and vibrate under door slams, a 4-inch hollow concrete block wall achieves an STC rating of 44 to 46 unpainted, and STC 47 to 49 when painted on both sides with high-build latex block filler to seal surface pores.

Illustrative Material & Labor Cost Example for 4-Inch CMU Partitions

Illustrative Planning Example (Formula-Based)
Cost ItemUnit Price RangeCost per Sq Ft Wall FaceContractor Specifications
4" CMU Partition Blocks$1.65 – $2.15 / block$2.05 – $2.651.125 blocks/sq ft + 10% waste allowance (1.24 units)
Type N or S Masonry Mortar$9.00 – $12.50 / 80-lb bag$0.35 – $0.48Narrow 3-5/8" bed joints use ~30% less mortar than 8" CMU
Horizontal Joint Wire (9-ga)$18 – $26 / 50-ft roll$0.30 – $0.45Installed in bed joints every 16 inches vertically (every 2nd course)
Top Slotted Deflection Clips$3.50 – $5.00 / clip$0.45 – $0.70Anchored to deck every 32" to 48" along top course
Masonry Labor & Tender$55 – $80 / crew-hour$7.50 – $11.00High productivity: masons lay 130–160 four-inch units per day
Turnkey Installed PartitionAll Materials & Labor$10.65 – $15.28Complete non-bearing partition including joint tooling

Pallet Packaging, Unit Counts & Flatbed Logistics

High Pallet Density

Standard delivery pallets carry 135 to 150 units of 4-inch CMUs arranged in 5 banded courses. One pallet provides approximately 120 to 133 square feet of wall area.

Pallet Weight (~3,240 lbs)

A pallet of medium-weight 4-inch CMUs weighs approximately 3,100 to 3,450 lbs, enabling commercial flatbeds to transport up to 14 full pallets per delivery run.

Elevated Slab Staging

When distributing 4-inch block pallets on upper concrete floor slabs, always stage pallets directly above primary structural beams to prevent temporary slab point-load deflection.

Compare 6-Inch, 8-Inch & 12-Inch Concrete Block Specs

Frequently Asked Questions About 4-Inch Concrete Blocks

What is the actual size of a 4-inch concrete block?

The actual manufactured dimensions of a nominal 4x8x16-inch CMU are exactly 3-5/8 inches wide, 7-5/8 inches high, and 15-5/8 inches long (92mm × 194mm × 397mm). The 3/8-inch difference allows for standard horizontal bed and vertical head mortar joints.

Can 4-inch CMU blocks be used for load-bearing walls?

Under the International Building Code (IBC Section 2109), 4-inch CMUs are generally classified as non-load-bearing due to their narrow web thickness. They are primarily engineered for interior corridor fire partitions, curtain walls, acoustic separations, and exterior brick veneer backup systems.

How much does a 4-inch concrete block weigh?

Under ASTM C90, a hollow 4-inch CMU weighs approximately 18 to 20 lbs in lightweight expanded aggregate, 21 to 23 lbs in medium weight, and 24 to 26 lbs in normal weight gravel concrete. A 100% solid 4-inch block weighs roughly 31 to 34 lbs.

What is the maximum unbraced height of a 4-inch block partition wall?

Building codes establish a maximum height-to-thickness (h/t) ratio of 30 for interior non-bearing masonry partitions. Based on actual 3-5/8 inch thickness, the maximum unsupported height between structural ceiling decks or horizontal stiffeners is approximately 9 feet 1 inch (108 inches).

What is the fire resistance rating of a 4-inch CMU wall?

Under IBC Chapter 7 and NCMA TEK 07-01D, an un-grouted hollow 4-inch CMU wall provides a 1-hour fire resistance rating with siliceous or limestone gravel aggregates, and up to a 1.5 to 2-hour rating when manufactured with lightweight expanded shale or pumice aggregate.
