Detailed ASTM C90 Cross-Section Specifications for 12-Inch CMU
Heavy Commercial Stretcher| Component / Measurement | Standard Dimension (Imperial) | Metric Equivalent | ASTM C90 Structural Standard |
|---|---|---|---|
| Unit Thickness (Width) | 11-5/8 in | 295 mm | ± 1/8 in standard manufacturing variance |
| Unit Height | 7-5/8 in | 194 mm | Standard 8-inch modular course height |
| Unit Length | 15-5/8 in | 397 mm | Standard 16-inch center-to-center spacing |
| Face Shell Thickness | 1-1/2 in | 38 mm | Min 1.25 in (most commercial molds cast 1.50 in) |
| Internal Web Thickness | 1-1/8 in | 29 mm | Min 1.125 in heavy-duty cross web divider |
| Core Cell Dimensions | 8-1/2 in × 5-1/4 in | 216 × 133 mm | Accommodates coarse gravel grout & dual #6 rebar |
| Net Cross-Sectional Area | ~81.5 sq in | 526 cm² | ~46% to 50% solid volume fraction |
IRC Table R404.1.1 Maximum Backfill Depth Matrix for 12-Inch CMU
Deep Foundation Engineering| Vertical Reinforcement Schedule | Sand / Gravel Soils (30 psf/ft) | Silty Sand Soils (45 psf/ft) | Clay / Expansive Soils (60 psf/ft) | Flexural Moment Capacity |
|---|---|---|---|---|
| Plain (Unreinforced) 12" CMU | 7.0 Feet | 6.0 Feet | 5.0 Feet | Relies strictly on masonry tensile bond |
| Reinforced #5 @ 48" o.c. | 8.5 Feet | 8.0 Feet | 7.0 Feet | 5,420 ft-lb / ft |
| Reinforced #5 @ 32" o.c. | 9.0 Feet | 8.5 Feet | 7.5 Feet | 8,130 ft-lb / ft |
| Reinforced #6 @ 32" o.c. | 10.0 Feet (Max) | 9.5 Feet | 8.5 Feet | 11,250 ft-lb / ft |
| Reinforced #7 @ 24" o.c. (Commercial) | 10+ Feet | 10.0 Feet | 9.5 Feet | 16,800 ft-lb / ft |
* Section modulus of a 12-inch CMU (Sxx ≈ 180 cu in per linear foot) is more than double that of an 8-inch CMU (87.6 cu in per linear foot), providing over 100% greater resistance against lateral soil bending.
High-Volume Core Grout Engineering & Coarse Grout Acceptance
Grout Volume Math (0.38 cu ft / unit)
A 12-inch CMU features massive interior cells holding 0.38 cubic feet of grout per unit. Filling 100 units solid requires:
- Ready-Mix Volume: 1.41 cubic yards per 100 blocks (compared to 0.89 cu yd for 8" CMU).
- Bagged Grout: Approximately 64 bags (80 lb each) of pre-mix high-strength grout.
- Partially Grouted (32" o.c.): Requires 0.35 cu yd (16 bags) per 100 blocks.
ASTM C476 Coarse Grout Approval
Unlike narrow 4-inch and 6-inch blocks, the generous 5-1/4" × 8-1/2" cell throats of 12-inch units easily accommodate ASTM C476 Coarse Groutcontaining 3/8" to 1/2" gravel aggregate without bridging. High-lift grouting pours up to 24 feet are permitted under TMS 602 when cleanout openings are provided at the base of every grouted cell.
Heavy Masonry Ergonomics, Hoisting & Flatbed Trucking Logistics
The 60-Pound Unit Weight Factor
Standard normal-weight 12-inch CMUs weigh between 54 and 64 pounds each. Over an 8-hour shift, a single mason handling 100 units lifts over 3 tons of concrete. On commercial jobsites:
- Two-Man Setting: Specifications often call for two-mason crews or two-man scissor clamps on courses above waist height.
- Lightweight Units: Specifying ASTM C90 Lightweight expanded shale CMUs reduces unit weight to 45–48 lbs, increasing daily production by 25%.
Pallet Density & Freight Capacity
Due to high block bulk and weight:
- Pallet Unit Count: Pallets carry only 45 to 60 units (weighing 2,900 to 3,500 lbs per pallet).
- Wall Area per Pallet: One pallet covers only 40 to 53 square feet of finished wall face.
- Flatbed Truckload: A commercial semi-flatbed (48,000-lb legal payload) carries only 13 to 14 pallets (600 to 780 blocks), requiring more delivery runs than 8-inch CMU projects.
2026 Real Cost Breakdown for 12-Inch CMU Heavy Structural Walls
US National Commercial Contractor Rates| Cost Item | Unit Price Range | Cost per Sq Ft Wall Area | Engineering Specifications |
|---|---|---|---|
| 12" CMU Blocks (Stretcher) | $4.10 – $5.20 / block | $5.10 – $6.45 | 1.125 blocks/sq ft + 10% waste allowance (1.24 units) |
| Type M or S Masonry Mortar | $10.00 – $14.00 / 80-lb bag | $0.65 – $0.90 | Wide 11-5/8" face shell beds require ~40% more mortar than 8" CMU |
| Heavy Vertical Rebar (#5 / #6) | $12.00 – $18.00 / 20-ft stick | $1.10 – $1.85 | Spaced at 24" to 32" o.c. plus footing dowels and top bond beams |
| Ready-Mix Coarse Grout | $145 – $175 / cu yd pumped | $2.10 – $3.90 | 0.38 cu ft / block (approx 58% higher volume than 8" CMU) |
| Commercial Masonry Labor | $75 – $115 / crew-hour | $12.00 – $17.50 | Two-man laying teams, heavy lifting, and grout pumping management |
| Turnkey Completed Wall | All Materials & Labor | $20.95 – $30.60 | Complete engineered structural retaining wall above footing |
TMS 602 High-Lift Grouting Protocols & Base Cleanout Openings
Because 12-inch CMU walls frequently reach heights of 10 to 16 feet in commercial basements and retaining walls, contractors employ high-lift grouting pours to fill walls in a single operation:
When grout pour height exceeds 5 feet, TMS 602 requires 3" × 4" cleanout holes cut into the base course of all grouted cells. This permits flushing out mortar droppings and inspecting rebar dowel alignment before sealing face shells.
Grout must be placed in maximum 5-foot vertical lifts. Within 15 to 30 minutes of placement (before initial set), the grout must be re-consolidated using a mechanical pencil vibrator to eliminate water voids caused by block absorption.
Under IBC Chapter 17, continuous or periodic special inspection by a certified deputy inspector is mandatory for structural 12-inch CMU grouting to verify rebar placement, bar splice lengths, and ASTM C1019 grout prism compressive testing.
Explore Other CMU Block Dimensions & Tools
Frequently Asked Questions About 12-Inch Concrete Blocks
What is the actual size of a 12-inch concrete block?
The actual manufactured dimensions of a nominal 12x8x16-inch CMU are 11-5/8 inches wide, 7-5/8 inches high, and 15-5/8 inches long (295mm × 194mm × 397mm). The 3/8-inch modular deduction allows for mortar joint bedding.
How much does a 12-inch cinder block weigh?
Under ASTM C90, a hollow 12-inch block weighs approximately 45 to 50 lbs in lightweight aggregate, 52 to 58 lbs in medium weight, and 60 to 68 lbs in normal weight gravel concrete. Due to this weight, masons frequently work in pairs or use lifting clamps.
When is a 12-inch CMU block required instead of an 8-inch block?
Under IRC Table R404.1.1(1), 12-inch blocks are required when foundation walls support more than 7 to 8 feet of unbalanced backfill soil, when supporting 3-story masonry residential structures, or in commercial warehouses where high lateral wind and racking loads exceed 8-inch flexural capacities.
How much concrete grout does it take to fill a 12-inch CMU?
A 12-inch block has large interior core cells totaling approximately 0.38 cubic feet. Filling 100 blocks solid requires 1.41 cubic yards of ready-mix grout (or 64 bags of 80 lb pre-mix grout), which is nearly 60% more grout than an 8-inch block.
What is the fire rating of a 12-inch block wall?
Under IBC Chapter 7, an un-grouted 12-inch hollow CMU wall provides a minimum 3-hour fire-resistance rating with calcareous gravel, and a certified 4-hour fire rating when manufactured with expanded clay or pumice lightweight aggregate.
Popular Quick Estimates
Pre-engineered takeoffs & benchmarks matched to this project
Related Calculators
Specialized tools for foundation, core fill, and budgeting
Stem walls, crawlspace blocks and footing requirements
Gravity and reinforced walls with soil load calculations
Subgrade walls, soil retention, waterproofing and grout
Core grout volume in cubic yards and 80-lb pre-mix bags
Blogs & Construction Guides
Technical articles, IRC code standards, rebar schedules & freight logistics

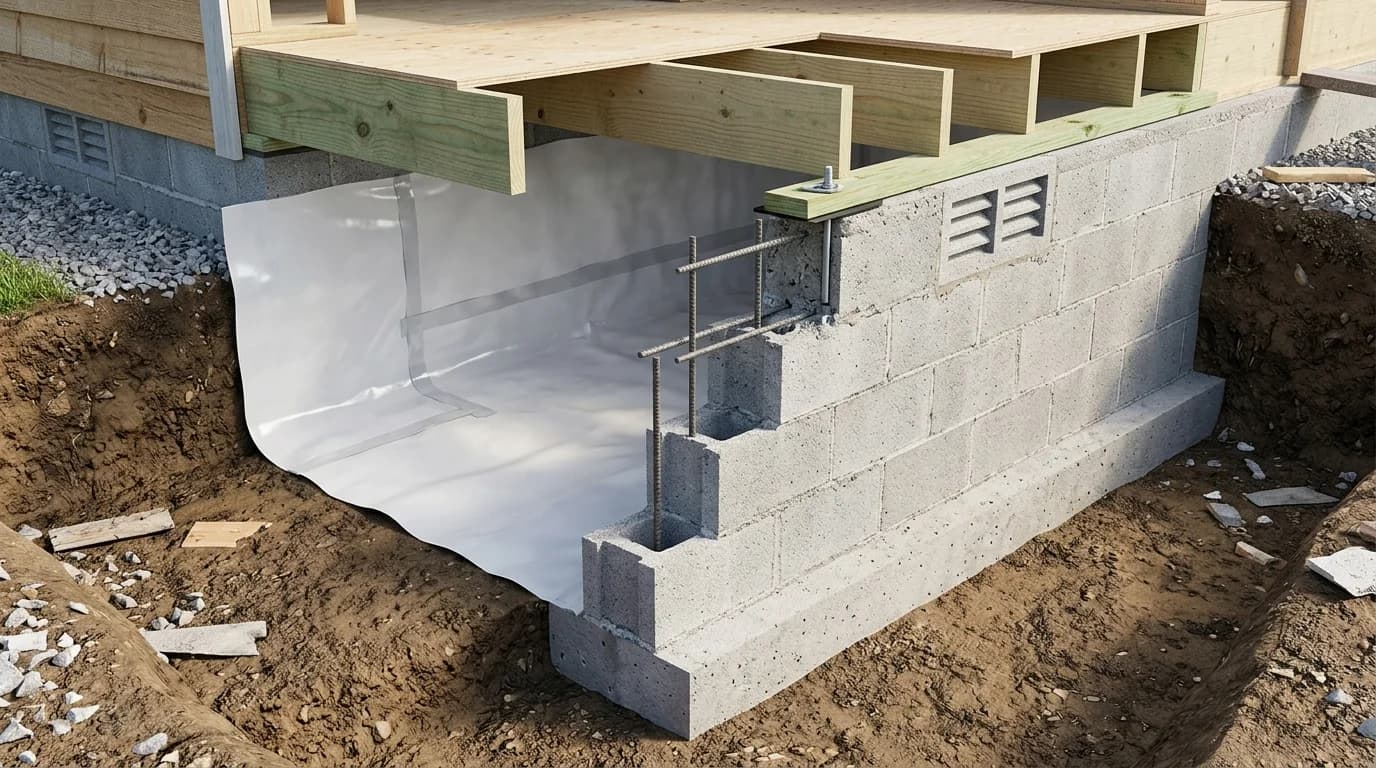

Cinder Block Foundations: Types, IRC Codes & Depth Guide

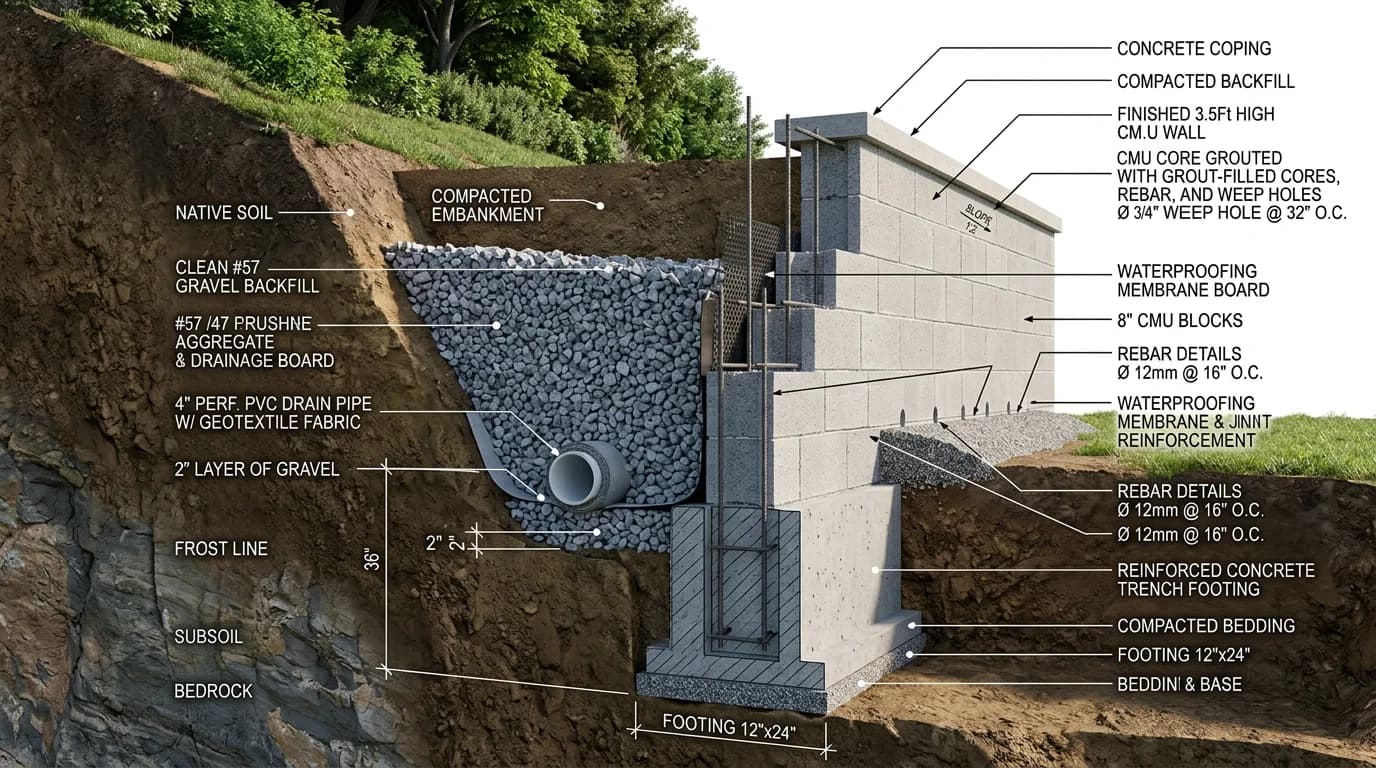

How to Build a Cinder Block Retaining Wall (IRC Guide)

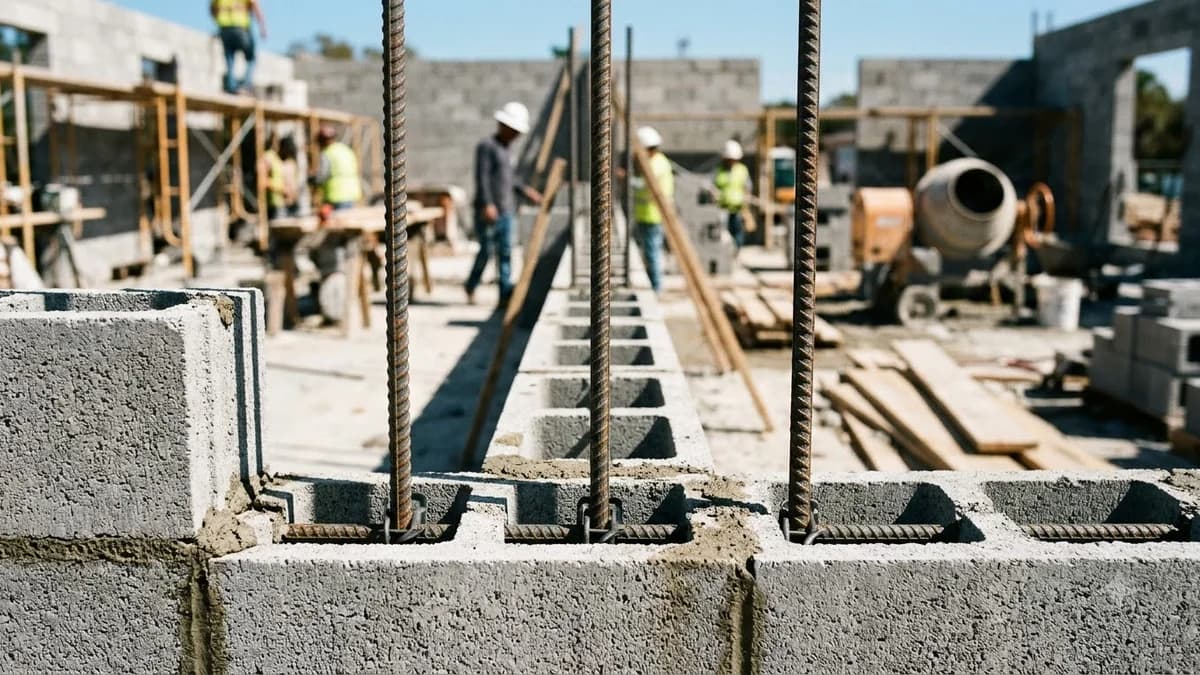

Rebar Spacing for Cinder Block Walls: IRC Code
